Ligne d'embouteillage Gai 3031 FM BIER

Description
Used Filling Monoblock GAI 3031FM BIER up to 3000 bph
General Description of the Machine
The Used Filling Monoblock GAI 3031FM BIER up to 3000 bph provides an advanced solution for automated bottling. First and foremost, GAI manufactured this monoblock in 2014, combining several functions into a compact and highly efficient unit. The machine, therefore, handles 0.35 ml bottles, ensuring a smooth and consistent bottling process.
Main Features
The Used Filling Monoblock GAI 3031FM BIER up to 3000 bph, as mentioned earlier, includes a 12-head rotary rinser, a 12-head counterpressure filler, and a single-station crowner. These components, consequently, work together to ensure high-quality bottling, with the system delivering a volumetric throughput of 1200 L/hour. Additionally, GAI constructed the monoblock from stainless steel, which ensures durability and compliance with CE standards.
Electrical and Control Features
The Used Filling Monoblock GAI 3031FM BIER up to 3000 bph operates on a 220V, three-phase, 60Hz power supply. Schneider Electric, therefore, designed the PLC and HMI, which facilitate precise process control. Furthermore, the machine also features an integrated CIP/SIP system, which includes a pump and stainless steel tank for automatic cleaning and sterilization.
Additional Components

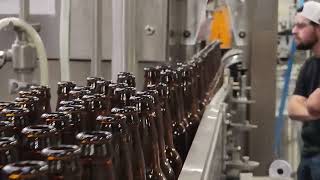

A conveyor belt with an external bottle rinser, in addition, supports the machine’s output, ensuring each bottle is adequately prepared for filling. The Used Filling Monoblock GAI 3031FM BIER up to 3000 bph operates at speeds ranging between 600 and 3000 bottles per hour. Moreover, it consistently delivers 50 bottles per minute for 0.35 ml bottles.
Safety and Compatibility
The machine, as expected, meets CE safety standards, and its stainless steel safety guards ensure safe and reliable operation. However, the system does not include the changeover kit for sizes other than 0.35 ml bottles, but you can purchase it separately. Therefore, this monoblock offers a robust and highly efficient solution for bottling beer and other beverages.
Technical Specifications of the Monoblock
The Used Filling Monoblock GAI 3031FM BIER up to 3000 bph consumes CO2 at 4 bar and, accordingly, requires a water pressure between 2.5 and 3 bar. The design, in addition, includes a transport system with an infeed accumulator, delivering a volumetric throughput of 1200 L/hour, equivalent to 317 gallons per hour. Thus, this machine serves operations that require efficiency and precision, offering a robust construction and an intuitive user interface.

Speed: 3000 BPH
Products: Beer
Containers: Glass
Formats: 0.35 L
Electrical data: V: 220Vhz: 60hz
Isobaric: Yes
Rotation: Clockwise
Rinser: No. of grippers: 12No. of treatments: Single
Filler: No. of valves: 12Fill type: IsobaricType of nozzle: FixedIsobaric valve: Traditional
Safety features: Yes
Manuals: Yes
Capper: Cap type: Crown capNo. of heads: 1Cap size: 26 mm
